Concrete Bridges

Designs and plans. Click on any picture to enlarge.

Plans and details for a concrete slab bridge.

Plans and details for a through concrete girder bridge. In a bridge of this type, the guard rails are actually the beams that support the bridge's deck.

Concrete through girder bridge plans and details.

Plans and details of a reinforced concrete through girder bridge.

Concrete combination through and deck girder bridge.

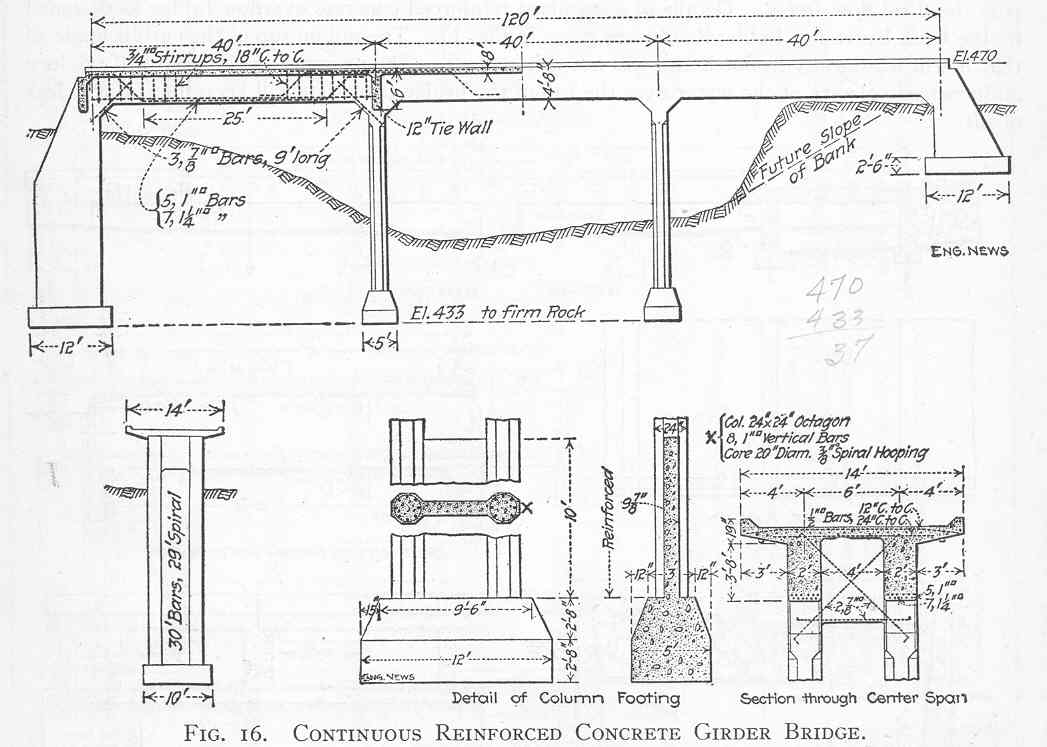

Details and plans for a continuous span concrete deck girder bridge.

Details and plans for a concrete cantilever deck bridge.

Plans and details for a cantilever open spandrel Concrete arch bridge.

Details and plans for a concrete trestle.
