This bridge, consisting of seven 100-foot long pony spans and steel stringer approaches of unmeasured length was built in 1946. All photos were taken form the south end of the bridge.

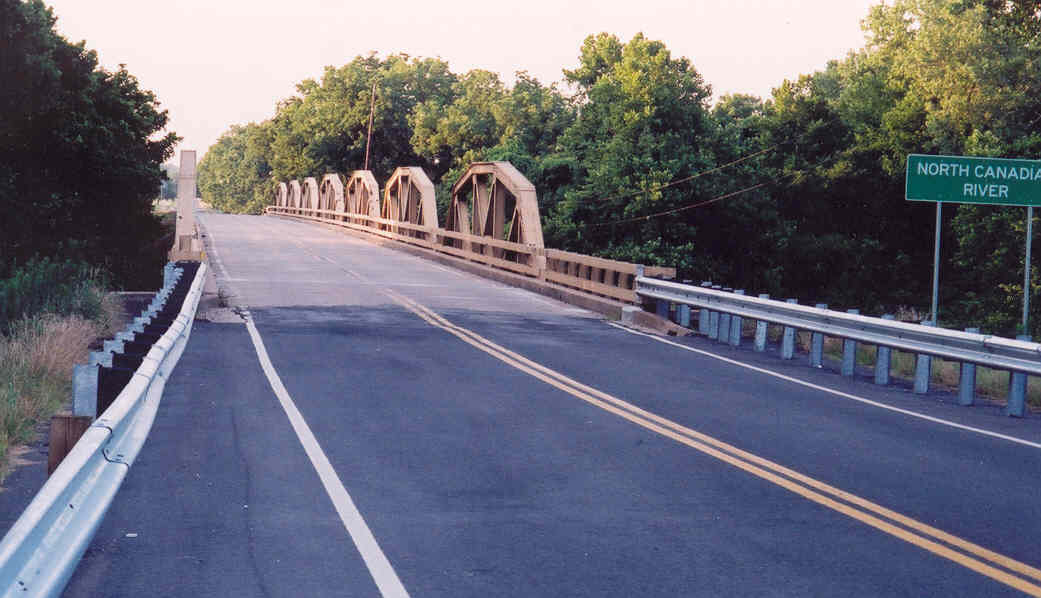

Above, the rails are placed very low on this bridge, the lower one almost on the curb. The trusses on this bridge are also quite deep, while the size of the top chords is smaller than usual. The deck has room for two standard 12' lanes.

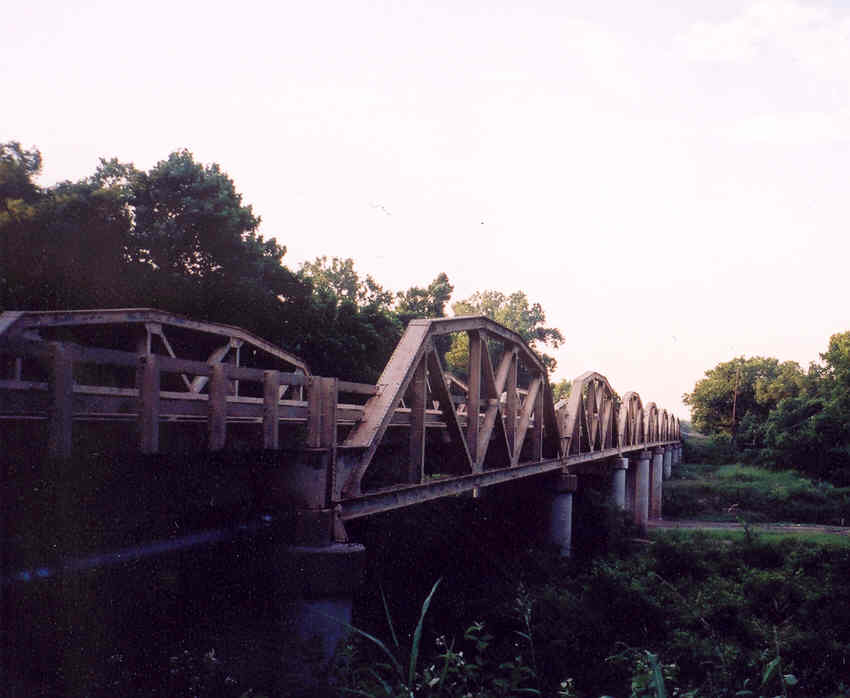

Below, an overview showing all of the main spans and approaches
5408 0398 X
